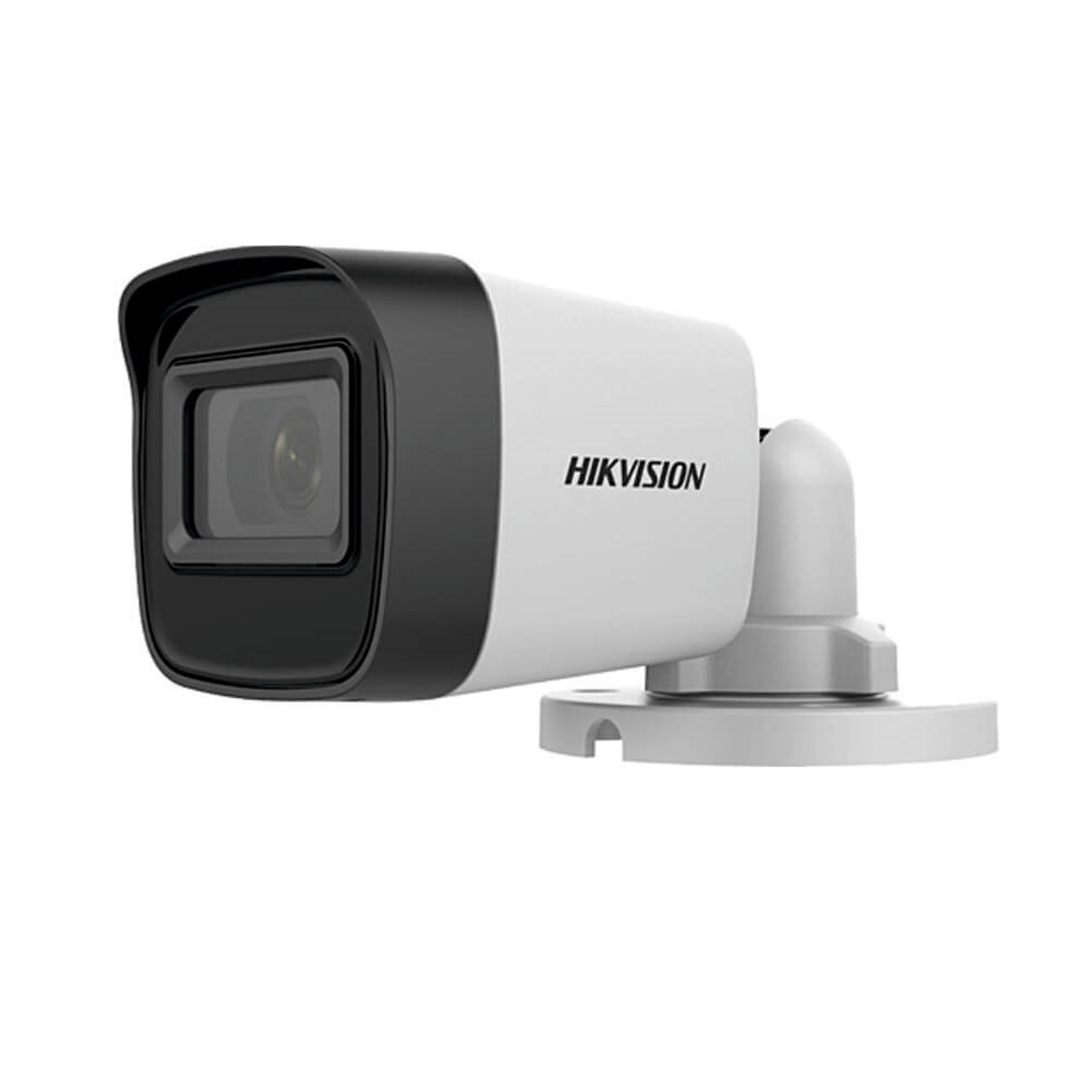

Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Frame Rate
TVI: [email protected], [email protected]
CVI: [email protected], [email protected]
AHD: [email protected], [email protected]
CVBS: PAL/NTSC
Min. illumination 0.01 [email protected](F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Field of View
2.8 mm, horizontal FOV: 99.5°, vertical FOV: 53.7°, diagonal FOV: 116.5°
3.6 mm, horizontal FOV: 76.4°, vertical FOV: 41.9°, diagonal FOV: 89.6°
6 mm, horizontal FOV: 49.2°, vertical FOV: 28.3°, diagonal FOV: 56.1°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/DWDR
Noise Reduction 2D DNR
Language English
Function Brightness, Sharpness, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Power Consumption Max. 3 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
