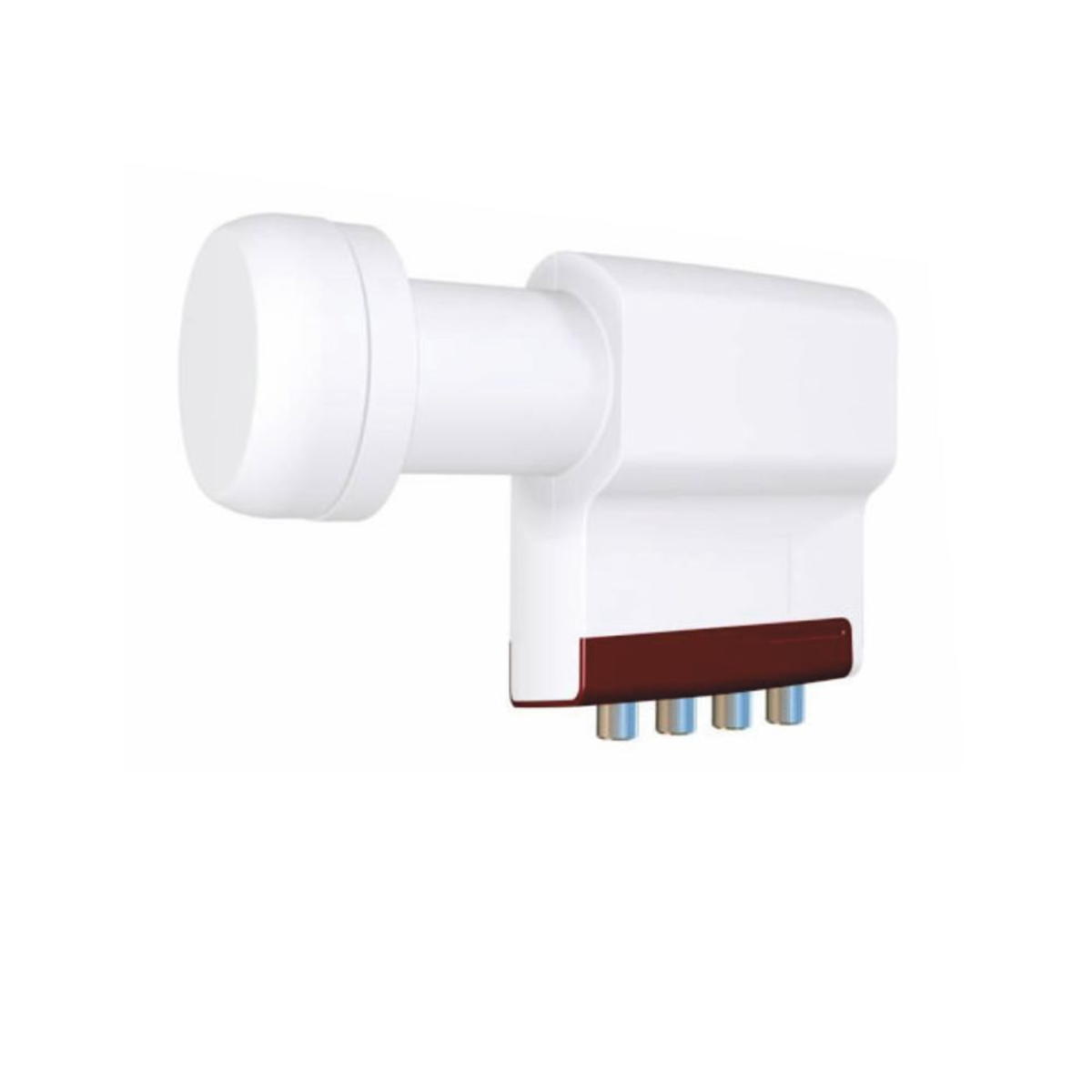

inverto Red Extend Quad ( Dört Çıkışlı ) LNB
inverto Red Extend Quad ( Dört Çıkışlı ) LNB
inverto Red Extend Quad ( Dört Çıkışlı ) LNB

inverto Red Extend Quad ( Dört Çıkışlı ) LNB (EU-İnv-018)

Marka : inverto
İndirim Oranı : %24 İndirim
Fiyat : 790,70TL(KDV Dahil)
İndirimli : 597,55TL(KDV Dahil)
Stok Miktarı : 0
Barkod : 5453002612163
108,21TL 'den başlayan taksitlerle

Yüksek Sinyal gücüne sahip dünyanın en kaliteli lnb serisi.

Inverto Red Extend Quad ( Dört Çıkışlı ) LNB
Ana Özellikler:
 • Çoklu Uydu Tesisatı için Uzun Boyunlu
• Düşük Gürültülü, DVB-S2 (HDTV) uyumlu
• Düşük güç tüketimi
• Yüksek Performans
• Yüksek Frekanslı Stabilite
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range   950 ~ 1950 MHz
Low Band LO Frequency  9.75 GHz
High Band Input Frequency Range  11.7 ~ 12.75 GHz
High Band Output Frequency Range  1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.3 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 85 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization)  11.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 200 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 243 g
Lnb Tipi
Dört Çıkışlı (Quad)
