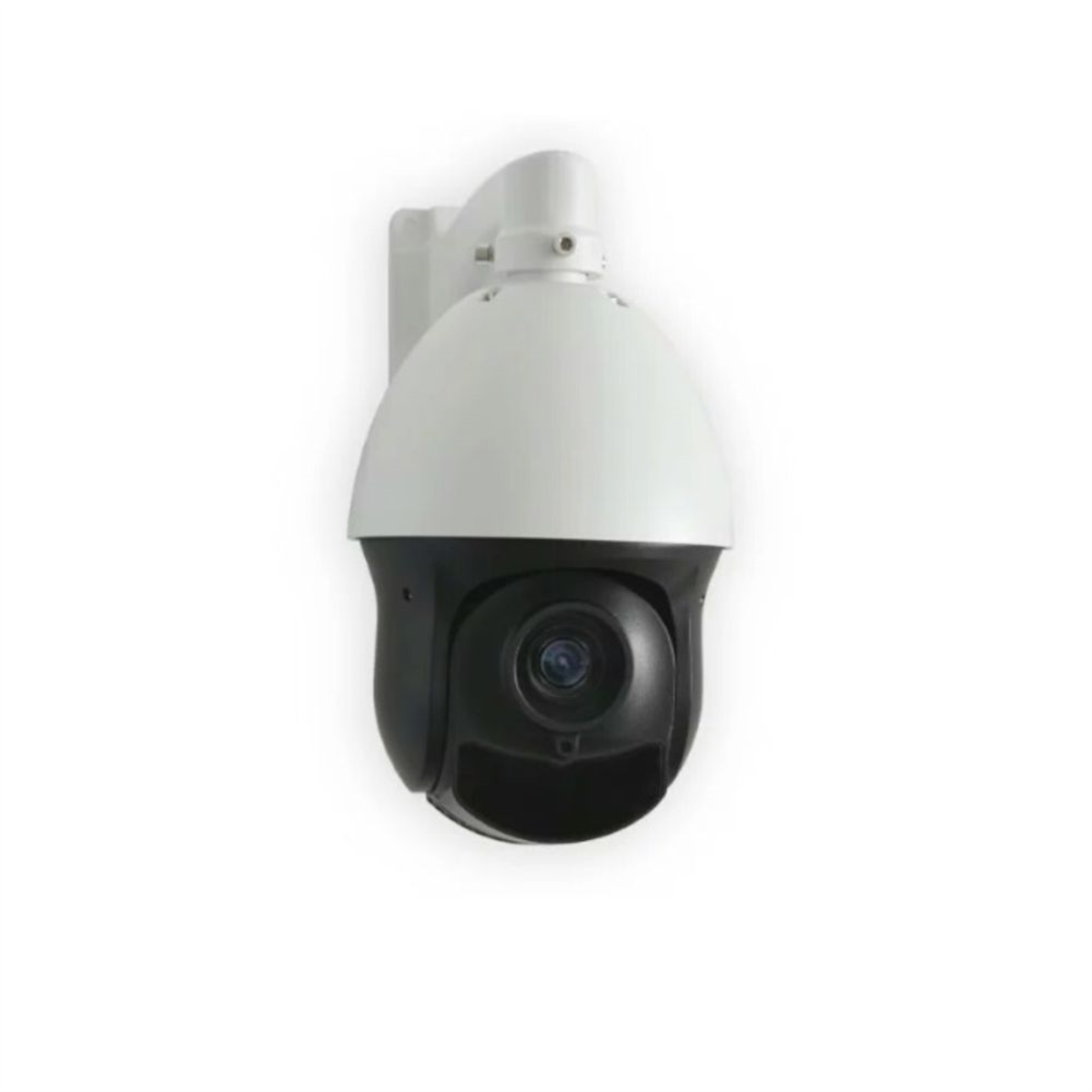

Novacom NC WP1003 Speed Dome (EU-Nvc-038)

Novacom NC WP1003 Speed Dome



4 in 1 IR high speed dome（AHD-H & Coaxial control）

Product overview

AHD products does not need RS485, does not need to set baud rate address, does not need to set the DVR, the connection video line is the direct control PTZ.

8pcs High quality array LEDs, auto-switch to long/middle/close distance focus, 80M IR distance

Full metal aluminum die-casting, all-weather environment design, high and low temperature resistant, waterproof to IP66.

Using high precision synchronous reduction motor, with high performance motor drive, control precision, stable movement, small vibration.

IR features: 3 groups of lighting control, auto-switch to long/middle/close distance focus

360° continuous rotation, no monitoring blind area.

Horizontal Rotation Speed 0.1°~100°/s, Vertical rotation speed 0.1°～100°/s.

255 presets, the positioning accuracy of 0.5 degrees.

Support: Guard position/Power up Action /Park action/3 groups Tours /Pattern/Area scanning/360° horizontal scanning.

Camera

sensor                                                   1/2.8″ CMOS

Definition                                           2．0M pixels  1920（H）X 1080（V）

Video System                                          PAL/NTSC

Minimum illumination colour：            0.1Lux   B/W：0.01Lux

Video output                                          AHD-H(1Vp-p 75Ω)

noise-signal ratio                                  ≥50DB

Lens

lens                                                       4.7 to 94mm（F1.6 to F2.7）20X Optical zoom function

IR control                                       Depending on the focal length

IR distance                                        100m

Rotation range                                  Vertical：0°～360°；Horizontal：-15°～90°

Rotational speed Keying: Vertical：  0°～100°/s；Horizontal：0°～100°/s

Presets                                                  255

Cruise scan                         4 （ Each set of 10 preset positions, the residence time can be adjusted ）

Area scanning Support

Horizontal scanning Support

Park  action Preset /Area scanning / Horizontal scanning / Cruise scan

INPUT/OUTPUT

Analog video output                           1.0Vpp/75Ω,NTSC or PAL,BNC Interface

control interface                                  Support:1. Coaxial control  2.RS485

General specification

Power                                                     DC12V-2A，Power Consumption<18W

work environment                                temperature -20～60℃；humidity ＜90%

Protection level                  IP66，4000V Lightning protection, surge protection and surge protection

material quality                 Metal aluminum



GW 2.35kg（singlepackage）
